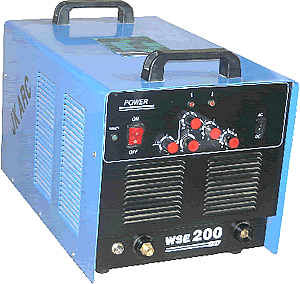

AC/DC TIG Welding Machine (Inverter Base)



TECHNICAL SPECIFICATION

Model TIG 315 AC/DC TIG 200 AC/DC
Power Voltage (V) 3 Phase 400V ± 15% 220
Rate Input 14 20
Out Current (A) 5-315 10-200
Arc Initiation way HF HF
Efficiency 85% 85%
Duty Cycle 60% 60%
Power Factor 0.93 0.93
Weight (Kg) 34 20
Isulation Class F F
Protection IP 21 IP 21


N. B. In view of continuous developments, we reserve right to modify the design, dimensions,
technical data and weight without any notice.
