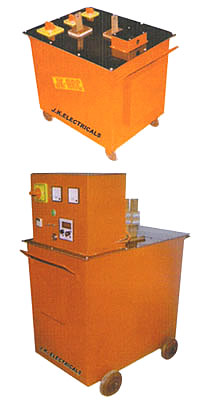

Heating Machine

We are specialist in manufacturing Heating Machine (Heater) which are used for making Stainless steel (SS) screw, Bolts, Nut and other products.

Our Machine consumes very low power. We built custom heating machines depending upon the diameter of the wires and the temperature required for the same. We built the machine for nuts and bolts up to 2 inch. of diameter of the wire and above.

For 2 mm to 8 mm Screw, heater is required for header machine, for bolt up to 17 mm heater is required for header machine, for 17 mm and above wire size forging is to be done for making Nuts and Bolts.

Our wide range of products are Heating Machine, ARC, BUTT, SPOT, SEAM, PROJECTION, TIG welding machine, MIG / CO2 welding machine and inverter welding machine.

We have a team of experienced staff for latest advancement in welding and heating technology and a set up to manufacture all types of Wlding machines and Heating Machines. We have best production team to arrange delivery in scheduled time. Our workshop is fully equipped with testing facility also.


TECHNICAL SPECIFICATION

Heating Capacity
2 mm to 6 mm
4 mm to 10 mm
 8 mm to 15 mm
10mm to 20mm
Supply
440 Volts
440 Volts
440 Volts
440 Valts
Phase
2 line of 3 Phase
2 line of 3 Phase
 2 Phase
2 Phase
Cooling
Oil / Water
Oil / Water
 Oil / Water
Oil / Water
Insulation
Class F
Class F
 Class F
Class F
Duty Cycle
100%
100%
100%
100%
Weight
75kg.
110kg.
 190kg
250kg

We also provide other accessories at extra cost :

  1. Temperature controller.
  2. Foot Switch Control with Contractor
  3. Thyristor Control
  4. Water-Cooling System
N. B. In view of continuous developments, we reserve right to modify the design, dimensions,
technical data and weight without any notice.
