| Mig-Mag Co2 Machine ( Diode Base ) |
|
- Choice of workhorse machines with proven economy.
- User friendly - 2 track / 4 track operation for zero defect GMA welding..
- Higher arc time increases productivity.
- Higher weld-metal deposition rates.
- Good and consistent weld quality with low hydrogen content.
- Can be use for welding a wide rage of metals like carbon steels, stainless, alluminum and its alloys, etc., provide appropriate consumable are used.
|
TECHNICAL SPECIFICATION
| POWER SOURCE |
|
JK-250 |
JK-400 |
| Static Characteristics |
Type |
Constant Potential |
Constant Potential |
| Maximum Welding Current |
Amps. |
250 |
400 |
| Maximum welding Current / Load Voltage |
- |
- |
- |
| (a) 60% Duty Cycle |
Amps. / Volts |
250 / 26.5 |
400 / 34 |
| (b) 100% Duty Cycle |
Amps. / Volts |
195 / 23.5 |
310/ 29.4 |
| Open Ckt. Voltage |
Volts |
16 - 36 |
18 - 54 |
| No. Of Voltage Steps |
No. |
32 |
32 |
| Input Supply Voltage |
Volts |
415 |
415 |
| Phase |
Nos. |
3 |
3 |
| Frequency |
Hz |
50 |
50 |
| Rating at 60% Duty cycle |
KVA |
10 |
20 |
| Maximum Input Current at Rated Output with 415 V supply |
Amps |
14 |
28 |
| Type of cooling |
.......................Forced Air Cooled.............................. |
| Class of Insulation |
-vubrain |
Class F |
Class F |
Dimension (Approximate)
Length X Width X height |
MM |
...........................800x445x880............................ |
| - |
| Wirefeeder |
vubrain |
JK-250 |
JK-400 |
| Wire Diameter Mild Steel |
MM |
0.8, 1.2 & 1.6 |
0.8, 1.2 & 1.6 |
| Stainless Steel |
MM |
1.2 & 1.6 |
1.2 & 1.6 |
| Aluminum |
MM |
1.2 & 1.6 |
1.2 & 1.6 |
| Wire Drive Motor |
Type |
Permanent Magnet DC Motor- |
| Drive System |
Type |
2-Roll Quick
Release |
4-Roll Quick Release |
| Wirefeed Speed |
M/Min |
1.2 - 18 |
1.2 - 18 |
Dimension (Approximate)
Length X Width X Height |
MM |
...........................430x225x310............................ |
|

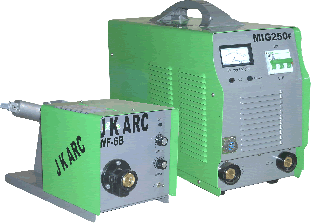

DC Inverter Base CO2 Machine |
TECHNICAL SPECIFICATION
|
MIG Inverter Base 250 Amp
|
MIG Inverter Base 350 Amp
|
| Input Voltage |
3 Phase, 400 Volts |
3 Phase, 400 Volts |
| Input Current |
Approx - 12.6 Amp |
Approx - 21 Amp |
| Wire Feeed |
Single Roller Type Feeder |
Single Roller Type Feeder |
| Brand of MIG Torch |
Imported Brand |
Imported Brand |
| Tip & Roller (0.8 & 1.2 mm ) |
0.8 mm Tip |
0.8 mm & 1.2 mm Tip |
| Thickness Capacity |
6 mm Welding Thickness |
12 mm Welding Thickness |
| Type of Insulation (H, F) |
F Class Insulation |
F Class Insulation |
| Open Circuit Voltage |
16.5 to 26.5 |
16 to 36.5 |
|
N. B. In view of continuous developments, we reserve right to modify the design, dimensions,
technical data and weight without any notice. |
