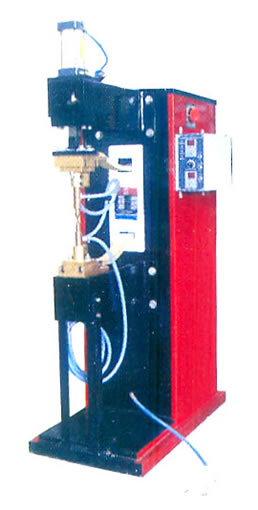

Pneumatic Operated press weld type Spot Welding Machine

Most suitable for mass production due to pneumatic operation. Machine conforms to latest Indian and International Standards. Selection of correct weld time using solid state
Electronic Timer ranging from 5-99-199 cycles.

  • Quick current selection using Rotary Tap Switch
  • "T" slotted face plate allows both vertical and horizontal adjustment of lower arm.
  • Increased current carrying section because of special electrode holder system.
  • Easy accessibility for maintences of Electronic, Electronic and Mechanical components.
  • Rocker Arm type Spot Welder are designed and developed to meet the needs of a vast number of metal fabrication shop. Besides spot welding the machine can also be used for Electroblazing, cross wire welding and resistance heating.

PNEUMATIC SYSTEM :
The basic pneumatic system consists of a pneumatic double acting cylinder solenoid valve of 4 ways 5 port, filter, Lubricator, regulator gauge and foot operated initiating
for solenoid coil.




TECHNICAL SPECIFICATION

Type Of Machine
JK 15
JK 20
JK 30
JK 40
JK 50
JK 75
JK 100
Rating @ 50 %Duty Cycle (KVA) 15 20 30 40 50 75 100
Throat Depth (mm) app 460 460 460 460 460 460 460
Nominal Throat clearence (mm) app 220 220 220 220 350 350 350
Welding Range app
S S/M S Sheet 2X mm app 3-0.3 3.25-0.32 3.75-0.6 4.0-0.8 4.5-1 4.5-1 06-Jan
Max Available Short Circuit app 8 9 12 14 20 24 28
Currents (KA)

By means of 6/8 Position off Load TAP S
Insulation Class F F F F F F F

Cooling for Arms & Electrodes

Water Water Water Water Water Water Water
Normal Electrode Force (approx.Kgc) 1-2 1-3 1-4 2-4 2-5 2-5 2-5
Electrode Stroke Max mm 40 40 40 40 40 40 40

Main Supply Voltage (V)

 415 415 415 415 415 415 415
Phase (Nos) 2 2 2 2 2 2 2
Main Supply Cable Size (Copper mm2) 15 20 25 25 50 50 100
Main Disconnection Switch (A) 40 50 75 100 150 200 200
Water at Max Temp of 30 c (Litmin) 3 3.5 3.5 4 4 4 5
Confirms to ISS No. 4009 - (Part) 1968
N. B. In view of continuous developments, we reserve right to modify the design, dimensions,
technical data and weight without any notice.
