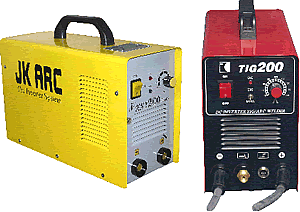

| TIG / MMA Arc Welding Machine |
MMA Inverter TIG / MMA Inverter |
TECHNICAL SPECIFICATION
|
Model |
JK ARC -200 |
JKHF-200 |
| Application |
MMA |
TIG/MMA |
| Rated input Voltage |
AC 220V ± 15% / (50~60) Hz |
AC 220V ± 15% / (50~60) Hz |
| Rate Output Voltage |
35A |
35 A |
| No-load Voltage |
61 |
55 V |
| Current Adjusting Range |
30 ~ 200A |
10 ~ 200A |
| Rated output Voltage |
28 A |
17 V |
| Duty Cycle |
60% |
60 % |
| No-load Consumption |
40 W |
40 W |
| Insulation Grade |
F |
F |
| Case Protection Grade |
IP21 |
IP21 |
| Dimensions (mm) |
375 x 155 x 290 |
375 x 155 x 290 |
| Net Weight (kg) |
8 |
8 |
|
TIG / MMA / Pulse
|
TIG / MMA Pluse Welding Power Source
TECHNICAL DATA
|
Model |
JK-200 P |
| Rated Input Voltage |
180V-240V / (50~60)Hz |
| Rate Input Capacity (KVA) |
5.3 |
| No- Load Voltage (V) |
50 ~ 70 |
| Current Adjusting Range (A) |
5 ~ 200 |
| Pulse Frequency Range (TIG) |
0.5 ~ 25Hz |
| Base Current Range (TIG) |
5-200A |
| Slop Up Time (TIG) |
0 - 5 Second |
| Slop Down Time (TIG) |
0.5 Second |
| Post Flow Time (TIG) |
1-10 Second |
| TIG Striking Method |
HF Striking |
| Duty Cycle |
35% (200A, TIG )
50% (160A, TIG, MMA) |
| Insulation Grade |
F |
| Case Protection Grade |
IP21S |
| Dimension (mm) |
455 x 214 x 340 |
| Net Weight (kg) |
14 Kg |
|
MMA / TIG Inverter
|
Inverter Machine
TECHNICAL DATA
|
Model |
TIG / MMA - 300 |
TIG / MMA - 400 |
| Power Voltage(V) |
3 phase AC380V ± 15% |
3 phase AC380V ± 15% |
| Frequency |
50 / 60 |
50 / 60 |
| Rate input current (A) |
14.4 |
18 |
| No load Voltage (V) |
54 |
64 |
| Output current adjustment arrange (A) |
5 - 300 |
5 - 400 |
| Rate output Voltage (V) |
30 |
36 |
| Duty cycle (%) |
60 |
60 |
| Efficiency (%) |
85 |
85 |
| Power factor |
0.93 |
0.93 |
| No- load loss(w) |
54 |
100 |
| Weight (kg) |
17.5 |
28 |
|
N. B. In view of continuous developments, we reserve right to modify the design, dimensions,
technical data and weight without any notice. |
